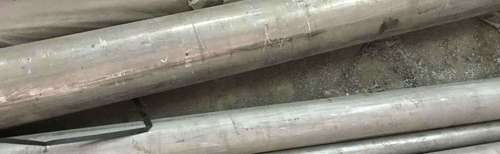

7050 Aluminium Alloy Stockists

7050 Aluminium Alloy Stockists
7050 Aluminium Alloy Stockists
Product Code : ALUMINIUM ALLOY 7050 STOCKISTS
Brand Name : PLUS METALS
Price And Quantity
  • Minimum Order Quantity
  • 10 kgs to 10000 kgs
  • Unit of Measure
  • Kilograms/Kilograms
Product Specifications
  • Product Type
  • Metal Alloy
  • Material
  • Aluminium Alloy
  • Shape
  • Rod, Bar, Sheet
  • Dimension(L*W*H)
  • 1 to 300 mm Millimeter (mm)
Product Description

Aluminium Alloy 7050 Stockists

Aluminum 7050 alloy is a heat treatable alloy. It has high toughness, strong mechanical strength, and good stress corrosion cracking resistance. The following datasheet gives an overview of Aluminium 7050 alloy.

Chemical Composition :

The following table shows the chemical composition of Aluminium 7050 alloy.

Element

Content (%)

Aluminum, Al

89

Copper, Cu

2.3

Magnesium, Mg

2.3

Zinc, Zn

6.2

Zirconium, Zr

0.12

Physical Properties :

The physical properties of Aluminium 7050 alloy are tabulated below.

Properties

Metric

Imperial

Density

2.6-2.8 g/cm3

0.0939-0.101 lb/in3

Melting point

494oC

920oF

Mechanical Properties :

The mechanical properties of Aluminium 7050 alloy are outlined in the following table.

Properties

Metric

Imperial

Tensile strength

515 MPa

74695 psi

Yield strength

455 MPa

65992 psi

Fatigue strength

240 MPa

34809 psi

Elastic modulus

70-80 GPa

10153-11603 ksi

Poisson's ratio

0.33

0.33

Elongation

11%

11%

Thermal Properties

The thermal properties of Aluminium 7050 alloy are given in the following table.

Properties

Conditions

T (oC)

Treatment

Thermal conductivity

180 W/mK

25

-

Other designations that are equivalent to Aluminium 7050 alloy include :

  • AMS 4108
  • AMS 4201
  • ASTM B247
  • ASTM B316
  • QQ A-430

Fabrication and Heat Treatment

Forming :

  • Aluminium 7050 alloy can be formed in O temper or heat treated conditions.

Welding :

  • Aluminium 7050 alloy should not be welded in order to prevent cracking and development of porosity. The weld joint produced will be weaker than the parent metal. Gas tungsten or gas metal arc welding methods are not preferred for welding this alloy.

Heat Treatment :

  • Aluminium 7050 alloy can be heat treated at 477°C (890°F). The time taken for this process is based upon the thickness of the section.

Cold Working :

  • Aluminium 7050 alloy can be cold worked using conventional methods.

Aging :

  • Aluminium 7050 alloy is aged using two-stage heat treatment. It is heated at 122°C (250°F) for 3 to 6 h. It is again heated at 163°C (325°F) for 15 h followed by cooling in air.

Hardening :

  • Aluminium 7050 alloy can be hardened by precipitation heat treatment.

Applications :

  • Aluminium 7050 alloy is mainly used in manufacturing aircraft and other structures.
Trade Information
  • Payment Terms
  • Cheque, Cash Advance (CA), Cash in Advance (CID), Letter of Credit at Sight (Sight L/C)
  • Sample Available
  • Yes
  • Sample Policy
  • Within a certain price range free samples are available
  • Main Export Market(s)
  • Africa, Central America, South America, Western Europe, Australia, Eastern Europe, North America, Middle East, Asia
  • Main Domestic Market
  • All India
