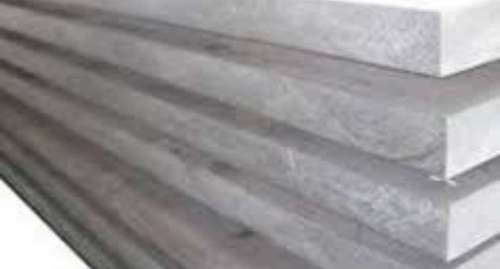

5754 H111H22h32O ALUMINIUM ALLOY TEMPER PLATES

5754 H111H22h32O ALUMINIUM ALLOY TEMPER  PLATES
5754 H111H22h32O ALUMINIUM ALLOY TEMPER PLATES
Product Code : ALUMINIUM ALLOY 5754 H111H22h32O TEMPER PLAtes
Brand Name : PLUS METALS
Price And Quantity
  • Minimum Order Quantity
  • 10 kgs to 10000 kgs
  • Unit of Measure
  • kilogram
Product Specifications
  • Product Type
  • Metal
  • Material
  • Aluminium Alloy
  • Shape
  • Rod, Bar, Sheet, Roll, Other
  • Dimension(L*W*H)
  • 1 to 300 mm Millimeter (mm)
Product Description

Aluminium alloy 5754 has excellent corrosion resistance especially to seawater and industrially polluted atmospheres. It has higher strength than 5251. This high strength makes 5754 highly suited to flooring applications.

Applications

5754 is typically used in:

  • Treadplate
  • Shipbuilding
  • Vehicle bodies
  • Rivets
  • Fishing industry equipment
  • Food processing
  • Welded chemical and nuclear structures

Alloy Designations

  • Alloy 5754 also corresponds to the following standard designations and specifications but may not be a direct equivalent:
  • A95754
  • Al Mg3
  • Al 3.1Mg Mn Cr
  • AW-5754

Temper Types

The most common tempers for 5754 aluminium are shown below with H114 & H111 being the most common treadplate temper

  • O - Soft
  • H111 - Some work hardening imparted by shaping processes but less than required for H11 temper
  • H22 - Work hardened by rolling then annealed to quarter hard
  • H24 - Work hardened by rolling then annealed to half hard
  • H26 - Work hardened by rolling then annealed to three-quarter hard
  • H114

Supplied Forms

  • Alloy 5754 is typically supplied as tread plate
  • Plate
  • Sheet
  • Treadplate/Patterened Sheet

Chemical Composition :

Element

% Present

Magnesium (Mg)

2.60 - 3.60

Manganese + Chromium (Mn+Cr)

0.10 - 0.60

Manganese (Mn)

0.0 - 0.50

Silicon (Si)

0.0 - 0.40

Iron (Fe)

0.0 - 0.40

Chromium (Cr)

0.0 - 0.30

Zinc (Zn)

0.0 - 0.20

Titanium (Ti)

0.0 - 0.15

Others (Total)

0.0 - 0.15

Copper (Cu)

0.0 - 0.10

Other (Each)

0.0 - 0.05

Aluminium (Al)

Balance

GENERIC PHYSICAL PROPERTIES :

Property

Value

Density

2.66 g/cm3

Melting Point

600oC

Thermal Expansion

24 x10-6 /K

Modulus of Elasticity

68 GPa

Thermal Conductivity

147 W/m.K

Electrical Resistivity

0.049 x10-6 Ω .m

Mechanical Properties :

Property

Value

Proof Stress

60 Min MPa

Tensile Strength

160 - 200 MPa

Elongation A50 mm

12 Min %

Hardness Brinell

44 HB

Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Letter of Credit at Sight (Sight L/C)
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples available with shipping and taxes paid by the buyer
  • Main Domestic Market
  • All India
