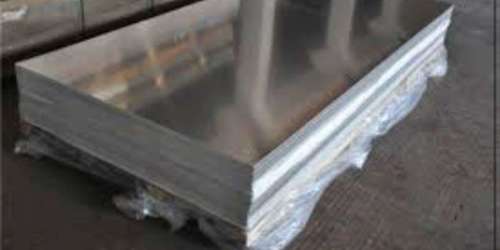

5052 H111H22h32O ALUMINIUM ALLOY TEMPER PLATES

5052 H111H22h32O ALUMINIUM ALLOY TEMPER  PLATES
5052 H111H22h32O ALUMINIUM ALLOY TEMPER PLATES
Product Code : ALUMINIUM ALLOY 5052 H111H22h32O TEMPER PLAtes
Brand Name : PLUS METALS
Product Description

Aluminium alloy 5052 in H32 temper has very good corrosion resistance to seawater and marine and industrial atmosphere. It also has very good weldability and good cold formability. It is a medium to high strength alloy with a strength slightly higher than 5251 and a medium to high fatigue strength.

Properties :

  • Alloy 5052-H32 has a range of useful properties:
  • Decorative Finish
  • Hard Wearing
  • Non-Slip
  • Corrosion Resistant
  • Low Maintenance
  • Anti-Static
  • Light-weight

Applications :

  • Amongst the applications for Alloy 5052 are:
  • Treadplate
  • Boilermaking
  • Containers
  • Nameplates
  • Road Signs
  • Architectural Paneling
  • Welded Tubes
  • Chemical Industry
  • Irrigation
  • Desalination units
  • Pressure Vessels
  • Rivets

Chemical Composition :

  • Spec: BS EN 573-3:2009
  • Alloy 5052

Chemical Element

% Present

Manganese (Mn)

0.0 - 0.10

Iron (Fe)

0.0 - 0.40

Copper (Cu)

0.0 - 0.10

Magnesium (Mg)

2.20 - 2.80

Silicon (Si)

0.0 - 0.25

Zinc (Zn)

0.0 - 0.10

Chromium (Cr)

0.15 - 0.35

Others (Total)

0.0 - 0.15

Other (Each)

0.0 - 0.05

Aluminium (Al)

Balance

Properties :

Physical Property

Value

Density

2.68 g/cm3

Melting Point

605oC

Thermal Expansion

23.7 x10^-6 /K

Modulus of Elasticity

70 GPa

Thermal Conductivity

138 W/m.K

Electrical Resistivity

0.0495 x10^-6 Ω .m

Spec: BS EN 485-2:2008

Sheet and Treadplate - 0.2mm to 6.00mm

Mechanical Property

Value

Tensile Strength

210 - 260 MPa

Proof Stress

130 Min MPa

Hardness Brinell

61 HB
