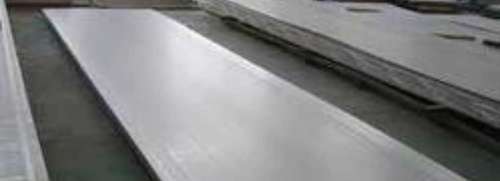

2014-T651 Aluminium

2014-T651 Aluminium
2014-T651 Aluminium
Product Code : Aluminium 2014-T651
Brand Name : PLUS METALS
Price And Quantity
  • Minimum Order Quantity
  • 10 kgs to 10000 kgs
  • Unit of Measure
  • Kilograms/Kilograms
Product Specifications
  • Product Type
  • Metal Alloy
  • Material
  • Aluminium Alloy
  • Shape
  • Rod, Bar, Sheet
Product Description

Due to its high strength, Alloy 2014 finds its application in Weapons manufacture, Aerospace Structure, military vehicles, bridges, and structural applications and so forth.Aluminium alloys 2014 T651 he 15 manufacturer is a copper based alloy with very high strength blended with excellent machining characteristics. Aluminium alloys 2014 T651 he 15 manufacturer is available in Bar, Sheet, Strip, Plate, Wire, Tube, Drawn Tube, Forging Stock and Rivet Stock. It is characterised by Heat treatable alloy, High mechanical strength slightly higher than 2011 and 2017A, High durability, resistance against corrosion, High strength, Excellent finish.

Temper Types :

The most common tempers for L93 - 2014A aluminium are:
  • T4 - Solution heat treated and naturally aged to a substantially stable condition
  • T3 - Solution heat treated, cold worked and naturally aged
  • T6 - Solution heat treated and artificially aged
  • T6511 - Solution heat treated and stress-relieved by stretching then artificially aged with minor straightening after aging - Equivalent to T4 condition
  • T651 - Solution heat treated, stress relieved by stretching then artificially aged
  • Aluminium & its Alloys are viewed as a standout amongst the most practical of metals for an ample of reasons
  • Not suggested for fusion welding. It is utilized for high quality parts as a part of airplane and hardware, including apparatuses and jolts and for security vans where quality ids basic. It tends to permit the removal of a more prominent volume of metal in a single operation for a equipment standard of completion than 6082.
  • Durability is lower and hence, needs a security covering. Machines preferable in solution treated condition over completely heat treated and utilized for machined parts where these qualities are basic.

Chemical Element of Aluminium Alloys 2014 T651 He 15

Chemical Element

% Present

Silicon (Si)

0.50 - 0.90

Iron (Fe)

0.0 - 0.50

Copper (Cu)

3.90 - 5.00

Zinc (Zn)

0.0 - 0.25

Manganese (Mn)

0.40 - 1.20

Magnesium (Mg)

0.20 - 0.80

Titanium (Ti)

0.0 - 0.15

Others (Total)

0.0 - 0.15

Chromium (Cr)

0.0 - 0.10

Nickel (Ni)

0.0 - 0.10

Other (Each)

0.0 - 0.05

Titanium + Zirconium (Ti+Zr)

0.0 - 0.20

Aluminium (Al)

Balance

Physical Property of Aluminium Alloys 2014 T651 He 15

Physical Property

Value

Density

2800 g/cm3

Melting Point

640oC

Thermal Expansion

22.8 x10^-6 /K

Modulus of Elasticity

73000 GPa

Thermal Conductivity

134 - 135 W/m.K

Mechanical Properties of Aluminium Alloys 2014 T651 He 15

Thickness (mm)

Proof strength (Min)

Tensile Strength (Min)

Elongation % (Min)

Over 6 up to & incl. 12.5

410

460

7

Over 12.5 up to & incl. 25

410

460

6

Over 25 up to & incl. 40

400

450

5

Over 40up to & incl. 63

390

430

5

Over 63 up to & incl. 90

390

430

4

Over 90 up to & incl. 115

370

420

4

Over 115 up to & incl.140

350

410

4
